QPCe7210 Series: PCI Express Carrier Cards for QMC Modules
Please sign in or register to see model options and to add products to your cart.
Product short description:
- Half-length PCIe Expansion Card
- One QMC Module Site
- Isolation Support
- PCIe Bus Gen 3 x4 Interface
QMC carrier cards provide an electrical and mechanical interface for QMC mezzanine modules.
- See what the media says about QMC modules
- Watch a webinar on the QMC standard
QPCe7210 Series: PCI Express Carrier Cards for QMC Modules Description

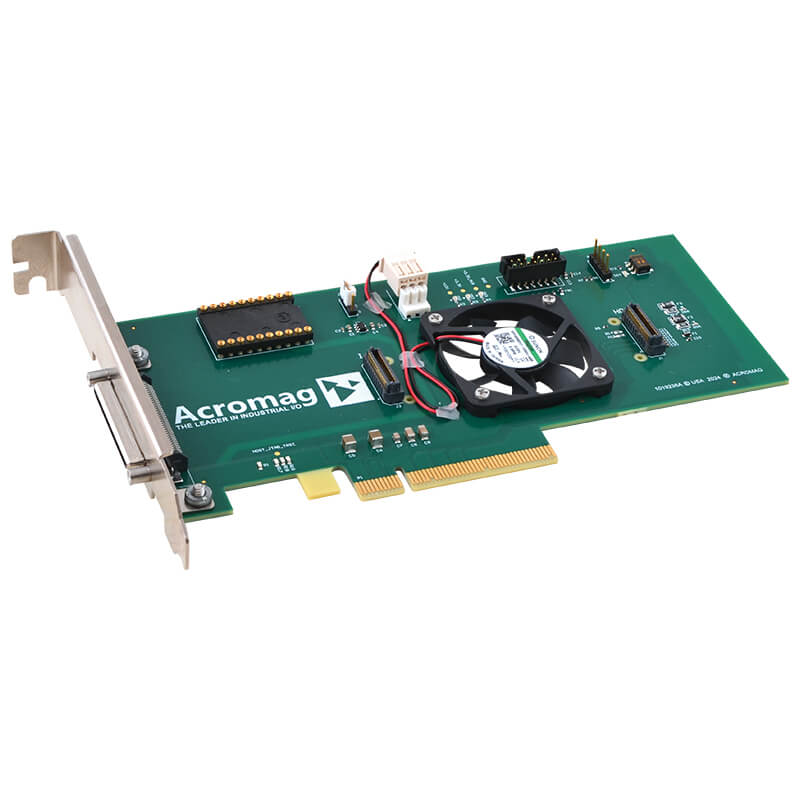

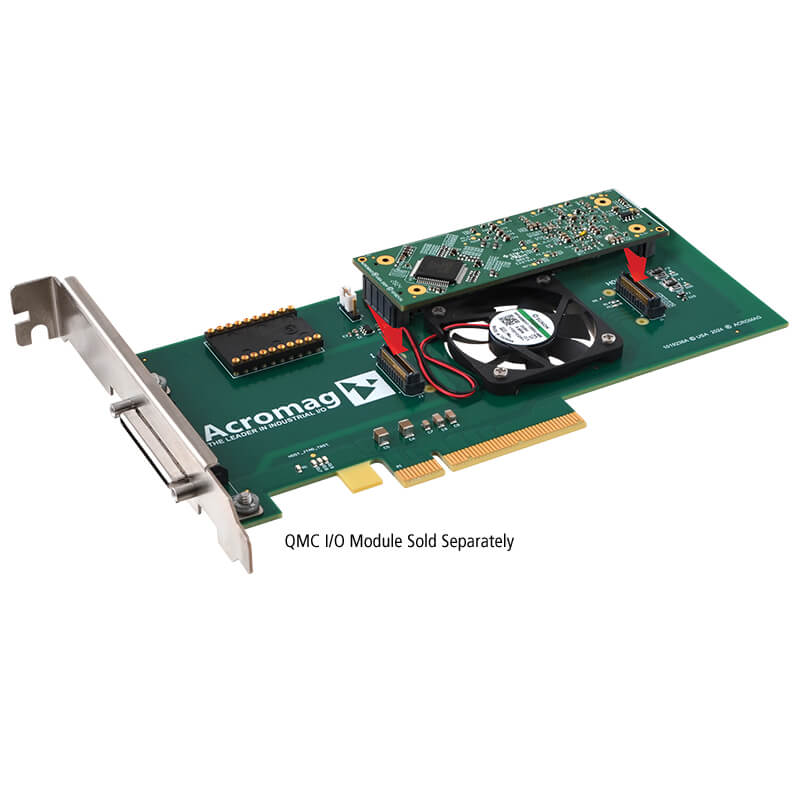

QMC carrier cards provide an electrical and mechanical interface for QMC mezzanine modules. A QMC module plugs into the carrier card to interface connected I/O and perform a variety of signal processing functions. Acromag’s QPCe7210 carriers are PCIe expansion cards with a single QMC site and a high-density connector for field I/O signals. The QMC module’s PCIe bus interface routes to the carrier card edge connector for communication with the host computer.
QPCe7210 carrier cards offer a variety of features to support a broad range of QMC modules. A standard 14-pin JTAG programming header facilitates programming and debugging of QMC modules equipped with an FPGA device. Fused, +3.3V, +3.3V Aux, +12V, DC power lines are available for the QMC module. An on-board fan provides direct cooling to the QMC module.
This carrier will also maintain isolation when hosting an isolated QMC module. The carrier’s QMC host connector is electrically isolated from the QMC I/O connector.
QMC carrier cards adhere to the VITA 93 standard for small form factor (SFF) mezzanine modules. Two high-performance 80-pin connectors for each QMC module site provide separate field I/O and PCIe bus host interfaces. The rugged design is well-suited for use in laboratory, industrial, defense, and aerospace applications.
Use of any single-width, 26 x 78.25mm VITA 93 compliant QMC module is supported. Typical applications involve monitoring sensors and controlling equipment levels in deployed systems or for lab test and simulation projects. Other common operations include communication, networking, and signal or protocol conversion. With powerful FPGAs, GPUs and other processors, QMCs can perform image processing, adaptive filtering, sensor fusion, artificial intelligence, and machine learning functions.
QMC730 Series: Multi-function I/O Description Features and Benefits
- Half-length PCIe expansion card ideal for use with compact, rugged servers and workstations
- One QMC mezzanine site
- PCI Express Gen 3 x4 interface
- Isolated QMC support
- JTAG programming header
- Cooling fan
- Individually fused power
- Resettable Positive Temperature Coefficient (PTC) fuse on each supply line
Learn more about the new QMC VITA Small Form Factor and view all Acromag models >
Specifications
Drawings & Diagrams
-
QMC350: Analog Input Module, 20-Channel, 16-bit A/D
- 20 Analog Input Channels
- 16-bit A/D Converter on Each Channel
- 1 MHz Sampling Rate
- PCIe Bus Interface
- See what the media says about QMC modules
- Watch a webinar on the QMC standard
Select options This product has multiple variants. The options may be chosen on the product page -
QMC440: Isolated Digital Input
- 32 Isolated Digital Input Channels
- Three Voltage Range Options
- Programmable Interrupts
- PCIe Bus Interface
- See what the media says about QMC modules
- Watch a webinar on the QMC standard
Select options This product has multiple variants. The options may be chosen on the product page -
QMC450: Isolated Digital Output
- 32 Isolated Digital Output Channels
- Bipolar Solid-State Relays
- AC and DC Switching
- PCIe Bus Interface
- See what the media says about QMC modules
- Watch a webinar on the QMC standard
Select options This product has multiple variants. The options may be chosen on the product page -
QMC510 Series: Serial Communication
- 8 Serial Communication Ports
- Programmable for EIA/TIA-232/422/485
- 256-byte FIFO Buffers
- PCIe Bus Interface
- See what the media says about QMC modules
- Watch a webinar on the QMC standard
Select options This product has multiple variants. The options may be chosen on the product page -
QMC520 Series: Isolated Serial Communication
- 4 Serial Ports
- Programmable for EIA/TIA-232/422/485
- 256-byte FIFO Buffers
- PCIe Bus Interface
- See what the media says about QMC modules
- Watch a webinar on the QMC standard
Select options This product has multiple variants. The options may be chosen on the product page -
QMC730 Series: Multi-function I/O
- Analog inputs
- Analog outputs
- Digital I/O
- Counter/Timers
- PCIe Bus Interface
- See what the media says about QMC modules
- Watch a webinar on the QMC standard
Select options This product has multiple variants. The options may be chosen on the product page
Additional information
| Weight | 1 oz |
|---|---|
| Dimensions | 3.08 × 1.02 × 0.43 in |
| Part Number | QPCe7211-1111: Half-length, single QMC site carrier card |
-
Description
QPCe7210 Series: PCI Express Carrier Cards for QMC Modules Description
QMC carrier cards provide an electrical and mechanical interface for QMC mezzanine modules. A QMC module plugs into the carrier card to interface connected I/O and perform a variety of signal processing functions. Acromag’s QPCe7210 carriers are PCIe expansion cards with a single QMC site and a high-density connector for field I/O signals. The QMC module’s PCIe bus interface routes to the carrier card edge connector for communication with the host computer.
QPCe7210 carrier cards offer a variety of features to support a broad range of QMC modules. A standard 14-pin JTAG programming header facilitates programming and debugging of QMC modules equipped with an FPGA device. Fused, +3.3V, +3.3V Aux, +12V, DC power lines are available for the QMC module. An on-board fan provides direct cooling to the QMC module.
This carrier will also maintain isolation when hosting an isolated QMC module. The carrier’s QMC host connector is electrically isolated from the QMC I/O connector.
QMC carrier cards adhere to the VITA 93 standard for small form factor (SFF) mezzanine modules. Two high-performance 80-pin connectors for each QMC module site provide separate field I/O and PCIe bus host interfaces. The rugged design is well-suited for use in laboratory, industrial, defense, and aerospace applications.
Use of any single-width, 26 x 78.25mm VITA 93 compliant QMC module is supported. Typical applications involve monitoring sensors and controlling equipment levels in deployed systems or for lab test and simulation projects. Other common operations include communication, networking, and signal or protocol conversion. With powerful FPGAs, GPUs and other processors, QMCs can perform image processing, adaptive filtering, sensor fusion, artificial intelligence, and machine learning functions.
QMC730 Series: Multi-function I/O Description Features and Benefits
- Half-length PCIe expansion card ideal for use with compact, rugged servers and workstations
- One QMC mezzanine site
- PCI Express Gen 3 x4 interface
- Isolated QMC support
- JTAG programming header
- Cooling fan
- Individually fused power
- Resettable Positive Temperature Coefficient (PTC) fuse on each supply line
Learn more about the new QMC VITA Small Form Factor and view all Acromag models >
-
