Product short description:
  • 20 Analog Input Channels
  • 16-bit A/D Converter on Each Channel
  • 1 MHz Sampling Rate
  • PCIe Bus Interface

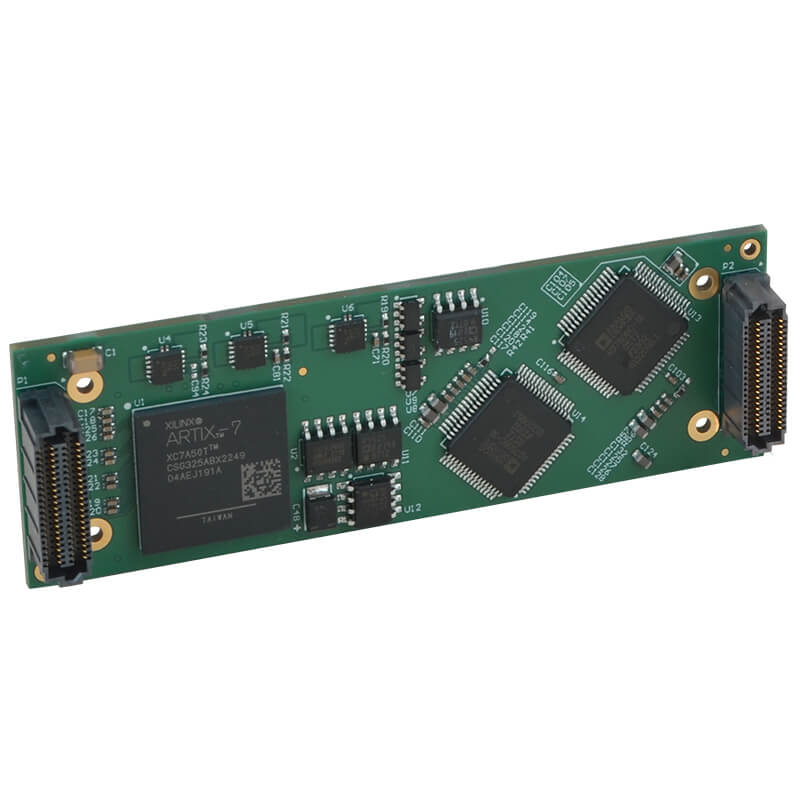

Acromag QMC350 modules offer 20 input channels for high-speed, high-resolution analog-to-digital signal conversion. Flexible digital filtering with software calibration of system gain, offset, and phase enables high accuracy.

QMC350: Analog Input Module with 20 Channels Performing 1MSPS 16-bit A/D Conversion Description

QMC mezzanine modules plug into a carrier card to interface connected I/O and provide a variety of signal processing functions. Acromag QMC350 modules offer 20 input channels for high-speed, high-resolution analog-to-digital signal conversion. A PCIe bus interface provides communication to the carrier and host computer.

Each input channel has its own simultaneous sampling 16-bit A/D converter with a throughput rate of 1MSPS. Flexible digital filtering with software calibration of system gain, offset, and phase enables high accuracy.

Software-selectable inputs provide great flexibility. Select from a wide variety of unipolar and bipolar voltage ranges for single-ended and differential pair inputs. Individual input control allows flexible channel selection and updating.

QMC modules adhere to the VITA 93 standard for small form factor (SFF) mezzanine modules. Two high-performance 80-pin connectors provide separate field I/O and PCIe bus host interfaces. Modules can deploy on a variety of carrier card platforms including PCIe expansion cards, 3U/6U Eurocards such as VPX and CompactPCI, VNX+ SFF cards, and many other architectures. The rugged design is well-suited for use in laboratory, industrial, defense, and aerospace applications.

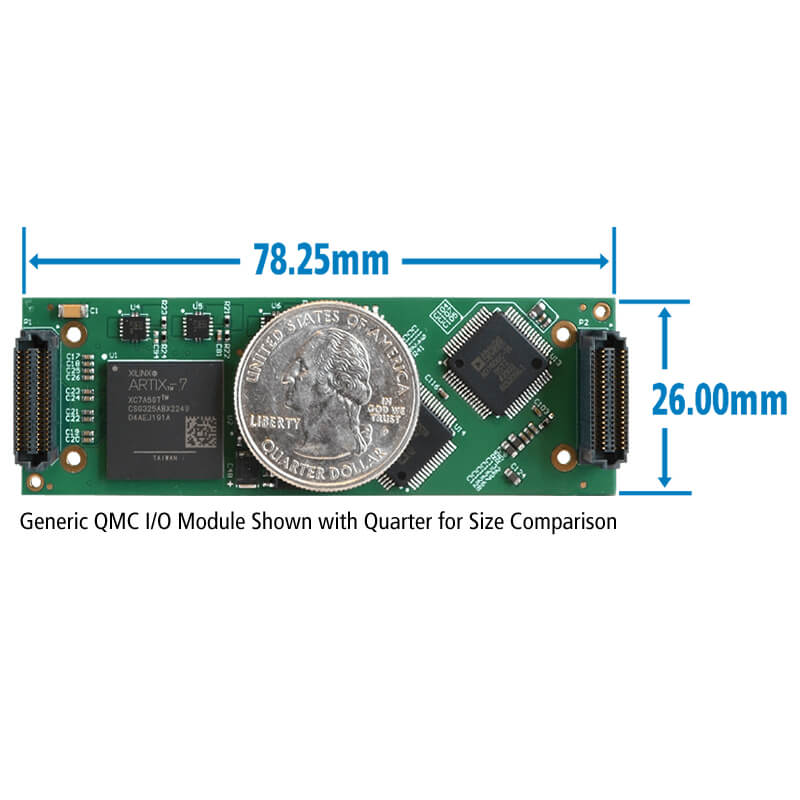

QMC modules have a much smaller footprint than PMC/XMC modules. Single-width QMC modules are only 26 x 78.25mm which facilitates mixing and matching of multiple functions on a single carrier card for high-density I/O solutions. They are ideal for computing systems with strict size, weight, power, and cost (SWAP-C) limitations.

An Intelligent Platform Management Interface (IPMI) facilitates system management. The QMC EEPROM holds module information and sensor data that is accessible by a smart carrier card with an IPMC controller over an I2C interface.

QMC350: Analog Input Module Features and Benefits

  • 20 analog input channels
  • Individual 16-bit ADC on each channel
  • Simultaneous Sampling ADC with
  • 1MSPS sampling rate (1MHz)
  • Software-selectable input voltage range
  • Input ranges selectable per-channel with 12 unipolar/bipolar voltage range options
    • Single-ended analog input ranges:
      0-5V, 0-10V, 0-12.5V, ±2.5V,
      ±5V, ±6.25V, ±10V, ±12.5V
    • Differential pair input ranges:
      ±5V, ±10V, ±12.5V, ±20V
  • Two bandwidth options: 25KHz and 220KHz
  • ±21 input clamp on all channels
  • 1M Ω input on all channels
  • Reliable software calibration with coefficients stored on-board
  • Individual selection and updating of analog input channels
  • Failsafe reset

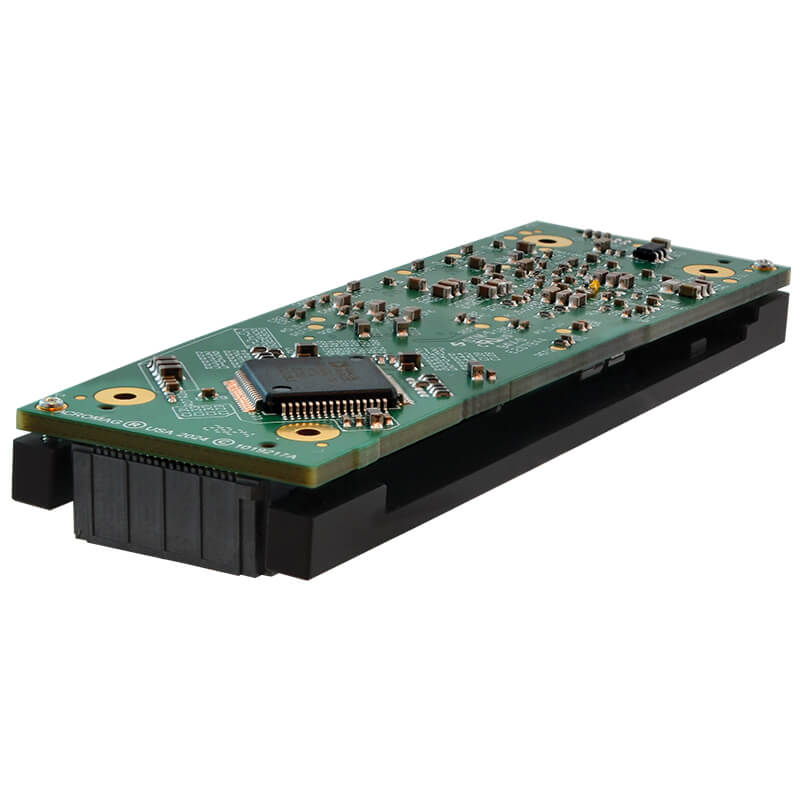

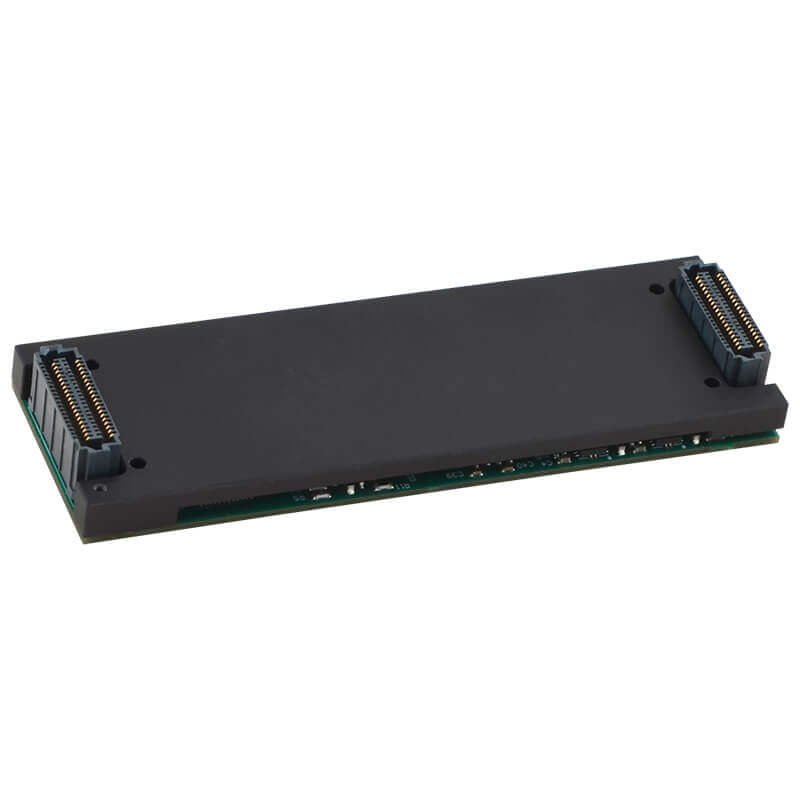

  • Extended temperature range and support for conduction-cooled systems

Learn more about the new QMC VITA Small Form Factor and view all Acromag models >

Manuals

QMC350 User Manual (Log in to download the file)

Drawings & Diagrams

  • Compare

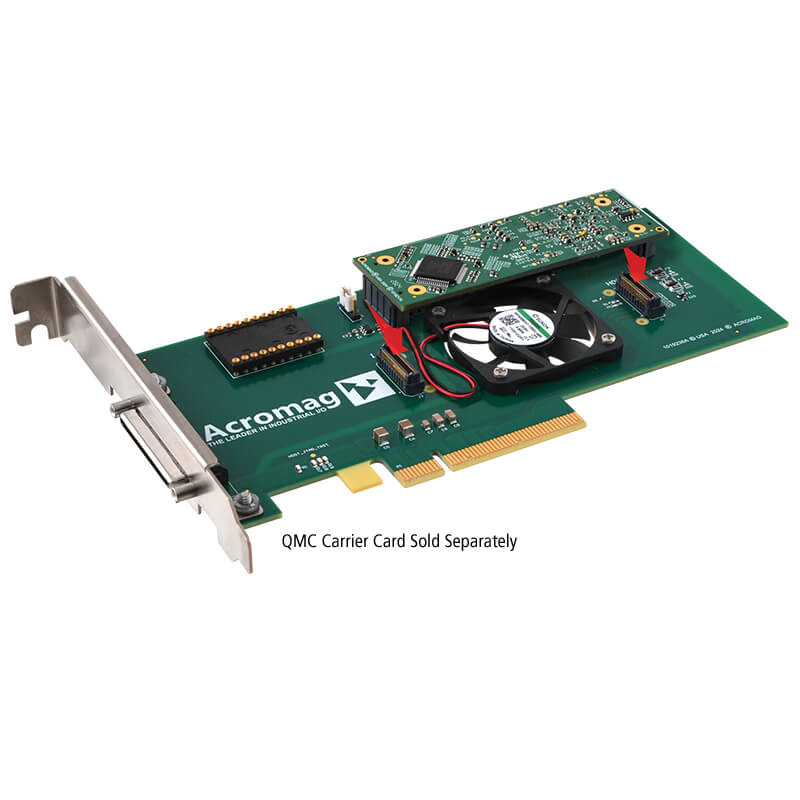

    QPCe7210 Series: PCI Express Carrier Cards for QMC Modules

    • Half-length PCIe Expansion Card
    • One QMC Module Site
    • Isolation Support
    • PCIe Bus Gen 3 x4 Interface
    QMC carrier cards provide an electrical and mechanical interface for QMC mezzanine modules.
    Select options This product has multiple variants. The options may be chosen on the product page

Additional information

Weight 1 oz
Dimensions 3.08 × 1.02 × 0.43 in
Part Number

QMC351-3111: Air-cooled, QMC352-3111: Conduction-cooled
