How to Excite a 2-wire, 4-20mA Continuous Level Sensor & Provide 2 Relay Outputs for Duplex Pump Control with Alternation – 8400391

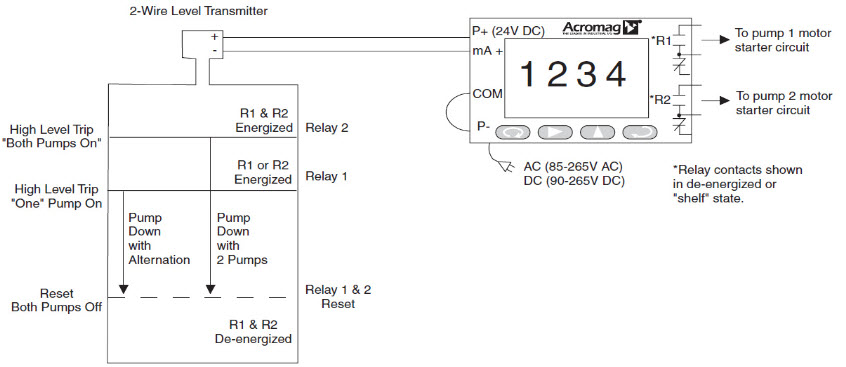

Pump Down with Duplex Pump Control

This document illustrates how to use APM765-6R2 meters for exciting a 2-wire, 4-20mA continuous level sensor, and provide two relay outputs for duplex pump control with alternation.

Learn more about the APM765 Panel Meters here.
