How to Excite a 2-wire, 4-20mA Continuous Level Sensor & Provide 2 Relay Outputs for Pump Down with High Alarm – 8400390

Pump Down with High Alarm

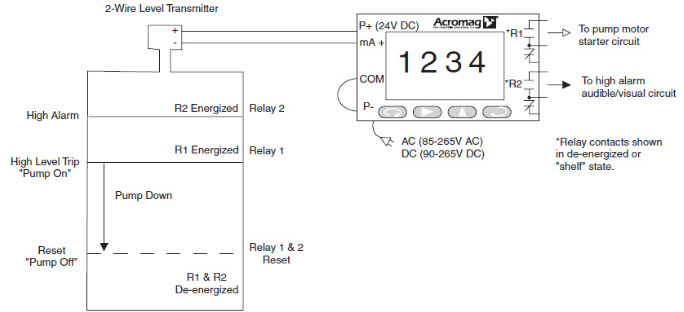

This document illustrates how to use the APM765-6R2-10 for exciting a 2-wire, 4-20mA continuous level sensor, and provide two relay outputs. One relay for pump down and one relay for high alarm with automatic or manual reset.

Defining the Problem:

Need to excite a 2-wire, 4-20mA continuous level sensor, and provide two relay outputs. One relay for pump down and one relay for high
alarm with automatic or manual reset

How to Excite a 2-wire, 4-20mA Continuous Level Sensor & Provide 2 Relay Outputs for Pump Down & High Alarm



The Solution: Acromag APM765-6R2-10

Learn more about the APM765 Panel Meters here.
