High-Density, High-Performance I/O Solutions

  • Single-width QMC module is only 26 x 78.25 mm
  • Less than a quarter the size of a PMC/XMC module
  • Supports PCI Gen 4 x4 interface on host connector
  • Up to 20 differential or 40 single-ended I/O channels

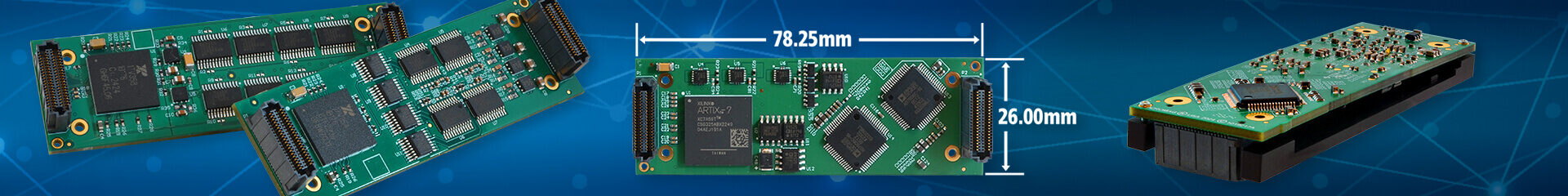

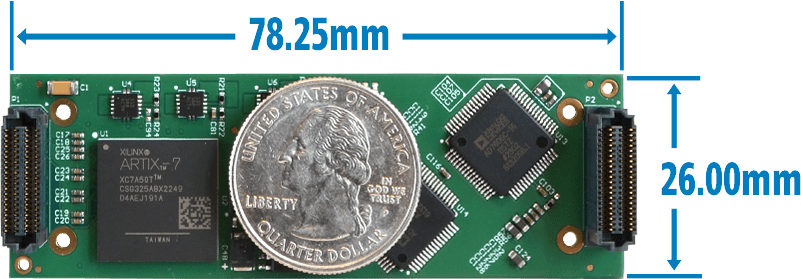

QMC modules are only 26 x 78.25mm

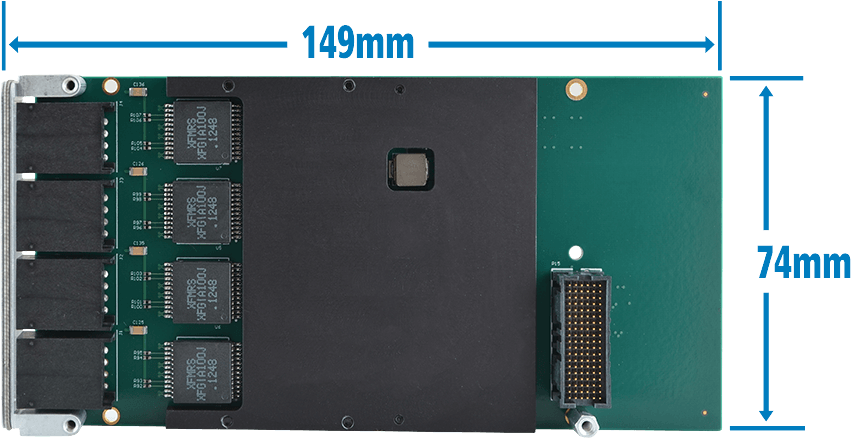

Standard XMC Module Dimensions

A Versatile and Modular Open Design Standard

Flexible integration across many platforms for high-performance systems

  • Mix and match multiple I/O functions on a single carrier card

  • VITA 93 specification ensures interoperability between modules and carriers

  • IPMI-ready for use in advanced computer management systems

  • Scalable to double, triple, or quad-width modules for larger FPGA, GPGPU, and other signal processing devices

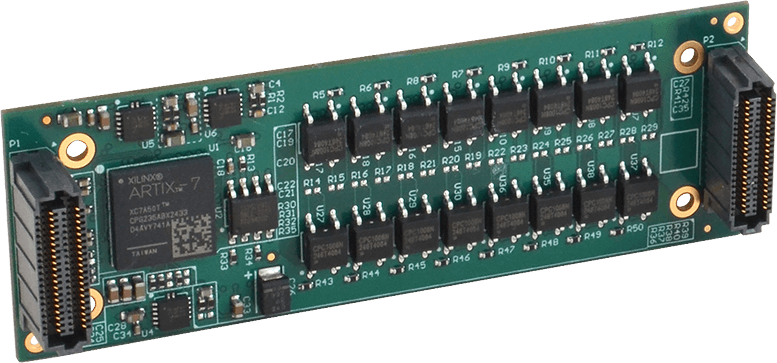

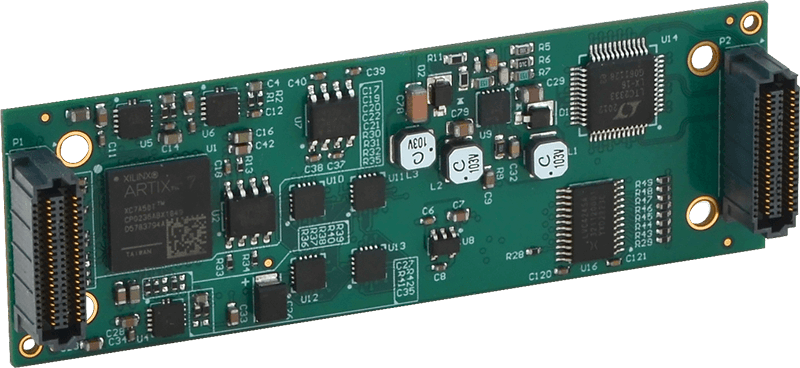

QMC730 Multi-function I/O Module

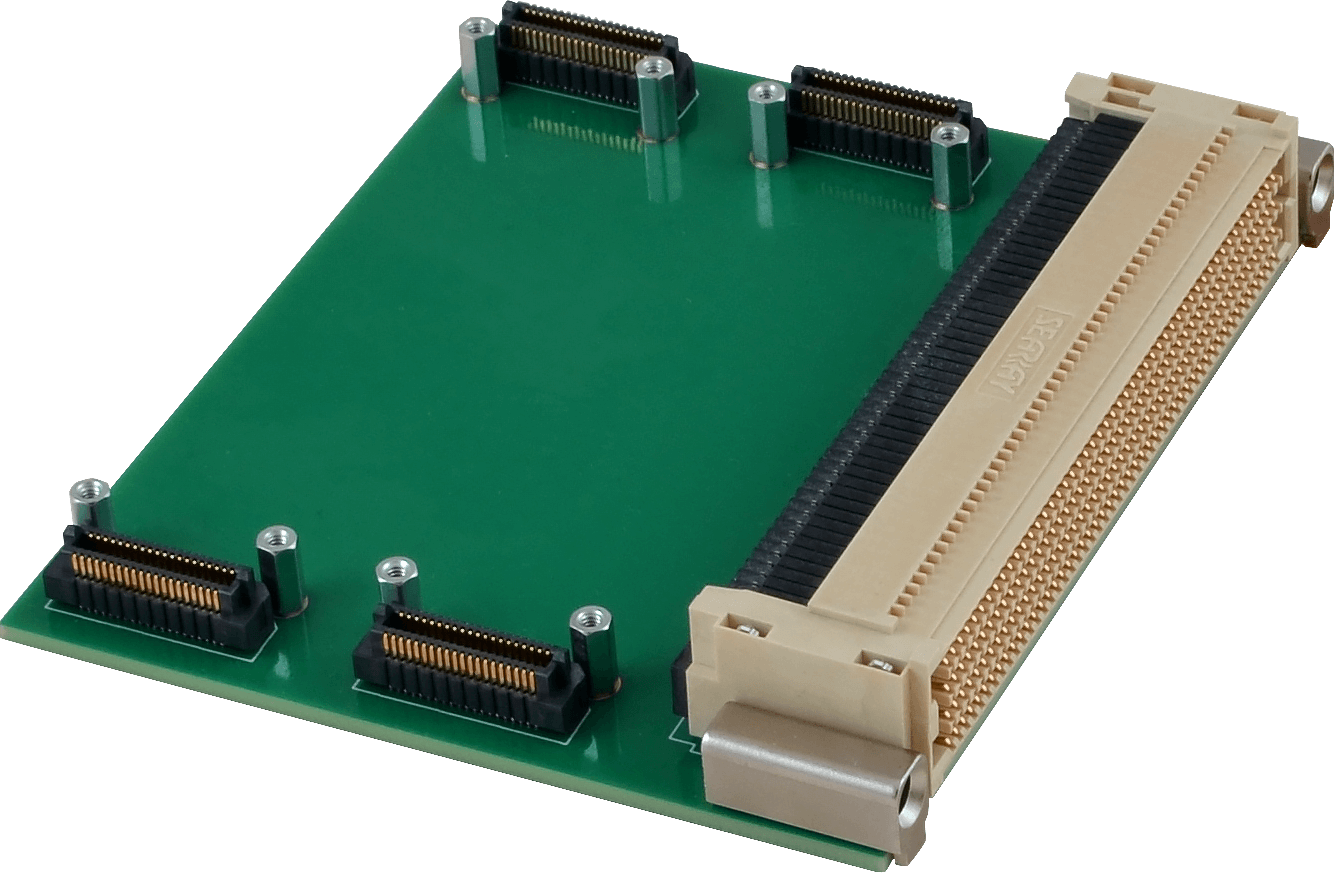

VNX QMC Carrier Card

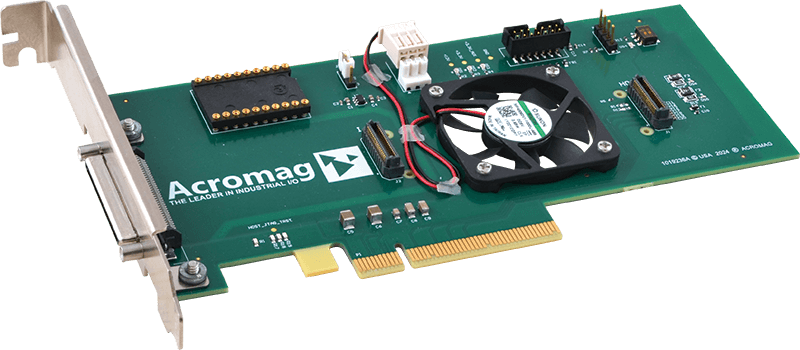

QPCe7210 Carrier Card

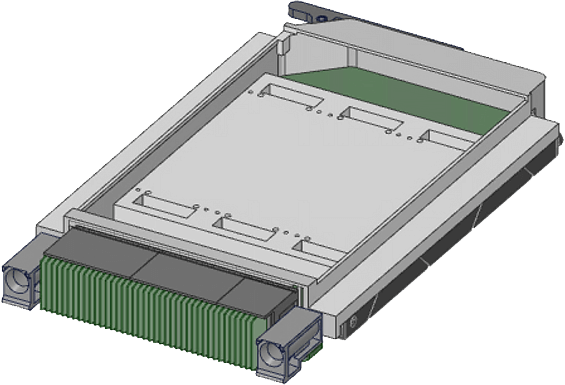

VPX Carrier for QMC Modules

Back to Top

Rugged Design for Defense and Industrial Systems

Built to perform reliably in extreme conditions with enhanced protection and durability

  • Engineered for use in harsh environments subject to shock, vibration, and thermal challenges

  • Standardized skyline heat sink for use in conduction-cooled systems

  • Supports isolated interfaces to protect from surges, noise and other harmful effects

  • Signals routed through carrier card to eliminate loose, internal wiring between connectors

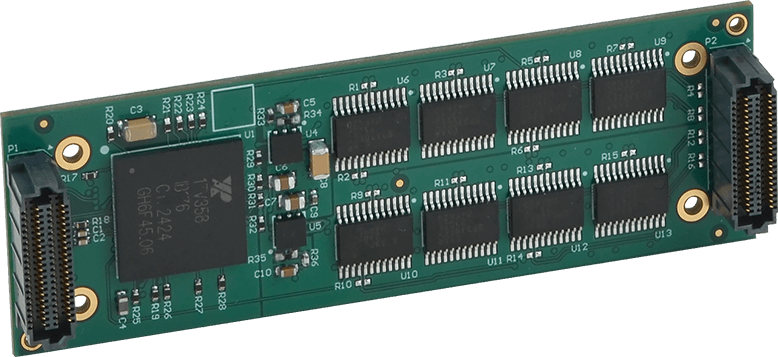

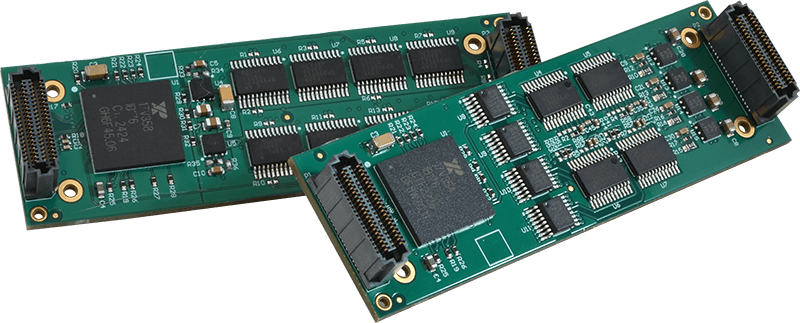

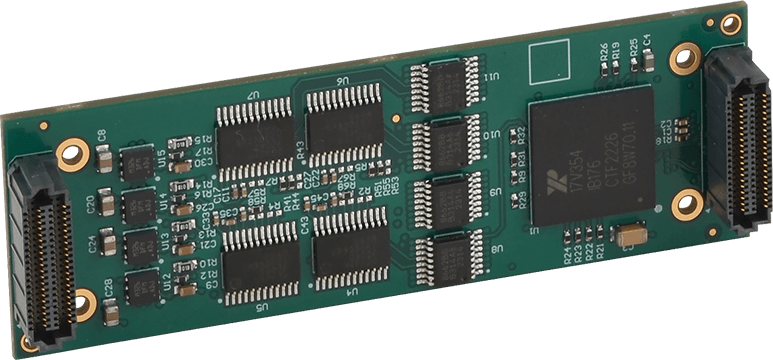

QMC510 and QMC520 Communication I?O Modules

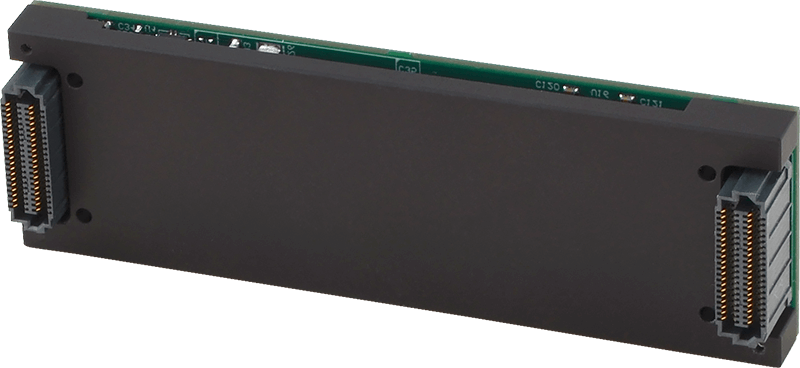

QMC Module with Heatsink

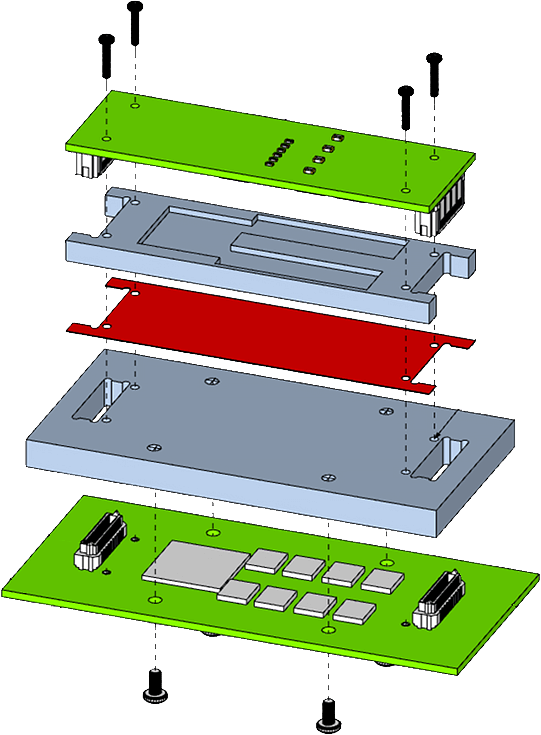

QMC Component Diagram

Back to Top

Because We Know I/O

Embedded I/O Solutions

Doing business with Acromag means you can count on receiving dependable value when using our products. We guarantee to meet or exceed published product performance specifications and offer you exceptional personal service with a real person within one business day.
