How to have a Flow Sensor with a Non-Linear Reversed Output Application Note
Have a flow sensor with a non-linear reversed output. Create a 4-20mA output proportional to flow rate.
- Model: 811T-0500 DC to DC Isolated Transmitter
- Model: 800C-SIP Software Interface Package
- Optional: PS5R-D24 Power Supply

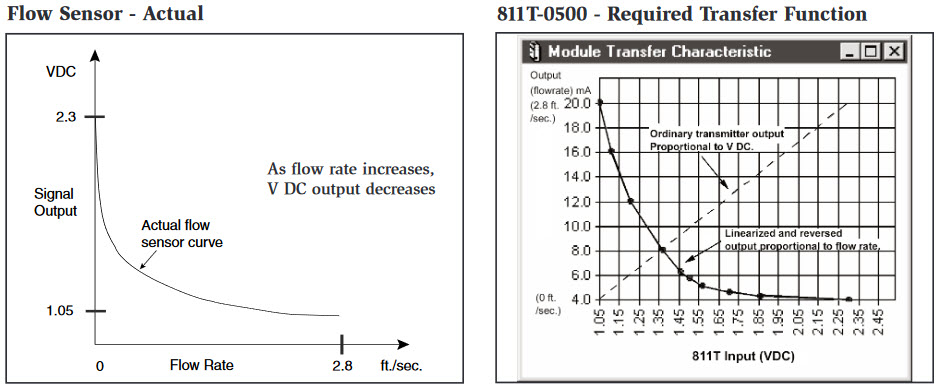

The 811T offers a 25 break-point table for sensor linearization. Input percentage is based on sensor V DC output.
Output percentage is based on actual flow rate. “Reverse” action is also achieved via the table.
Download PDF for complete application note, including additional diagrams.
