Acromag VPX products a are designed for COTS applications. High performance 3U or 6U single board computers feature air or conduction-cooled options.

VPX carrier cards provide a simple and cost-effective solution for interfacing mezzanine I/O modules to a VPX computer system.

Analog, digital, FPGA, counter/timer, communication, networking, serial and multi-function I/O Mezzanine modules for VPX carriers are available.

Acromag VPX products

Click here to download – VPX Overview Brochure

VPX Single Board Computers

VPX single board computers are ideal for high-performance defense and scientific research systems requiring high-speed I/O with serial fabric interconnect technologies.

The AcroExpress® 3U and 6U SBC modules can support one or two DDR4 ECC SODIMMs, for a total of up to 32GB of removable memory. The SODIMMs are firmly attached to the module with screws and surrounded by heat sink material to provide a mechanically and thermally robust mechanism. Extended temperature models are available for operating in a -40°C to +85°C range.

The VPX6860 6U SBC supports an XMC mezzanine module, with up to a x8 Gen3 PCIe interface. It also supports one AcroPack or mini-PCIe module.

An optional rear-transition module is available to provide easy access to all of the P2 connector’s I/O signals.

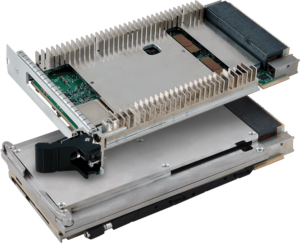

VPX6600 3U VPX SCB

  • 6th Generation Intel® Xeon® CPU
  • Up to 32GB DDR4 ECC RAM
  • Conduction-Cooled Option

VPX6860 6U VPX SBC

  • Intel® Xeon® E3 CPU
  • AcroPack® and XMC I/O slot
  • Up to 32GB DDR4 ECC RAM
  • Dual 40 GbE Ports
VPX6600 3U VPX SCB
VPX6860 6U VPX SBC

Click here to download your brochure now – VPX Overview Brochure

Back to Top

VPX Carrier Cards

Acromag’s 3U and 6U OpenVPX™ carrier cards for AcroPack, XMC or PMC mezzanine modules are designed for COTS applications.

VPX Carrier Cards for AcroPack Modules

3U and 6U carrier boards provide a modular approach to system assembly since each carrier can be populated with any combination of analog input/output, digital input/output, communication, AcroPack modules. The modularity allows the user to create a board which is customized to the application. This saves money and space; a single carrier board populated with AP modules may replace several dedicated function VPX boards.

VPX Carrier Cards for XMC and PMC Modules

3U and 6U carrier boards for VPX host XMC and PMC mezzanine modules for a simple and cost-effective solution.

Read White Paper: Will Acromag’s VPX Carrier Work in My System?

VPX Carrier Cards

Click here to download your brochure now – VPX Overview Brochure

Back to Top

Mezzanine I/O Modules for VPX Carriers

VPX cards allows I/O capabilities with carrier cards for 3U VPX, 6U VPX. Choose I/O support for AcroPack, PMC, and XMC I/O options to fit your application.

White Paper Webcast: Key Considerations When Migrating From VME to VPX or PCIe

Mezzanine I/O Modules for VPX Carriers

Click here to download your brochure today – VPX Overview Brochure

Back to Top

Because We Know I/O

Because We Know I/O

Doing business with Acromag means you can count on our 60+ years of industry knowledge when choosing your supplier. A global network of sales professionals gives you local access to friendly, highly trained support specialists. At the US factory, we guarantee support with a real person within one business day.
