Product short description:
  • 6 mechanical relay outputs
  • 6 discrete inputs
  • Ethernet I/O plus Expansion I/O
  • Multi-protocol support

NT2130 modules offer six 5A mechanical relays and six discrete inputs. The NTE Ethernet I/O models provide a compact network interface to monitor and control discrete device levels. Appending NTX expansion models can interface up to 24 relays and 24 level sensing inputs on a single IP address.

Click here to watch a short video highlighting the features of the BusWorks NT Series.

NT2130 Ethernet Digital I/O Modules Description

The BusWorks® NT2131 Ethernet digital I/O modules with mechanical relays series offers a cost-effective, modular solution for Ethernet remote I/O systems. Two module types are available.

NTE Ethernet models provide the protocol interface plus I/O signal processing channels.

NTX expansion modules add extra I/O channels when mated to any NTE Ethernet communication module.

NT2130 modules offer six 5A mechanical relays and six discrete inputs. The NTE Ethernet I/O models provide a compact network interface to monitor and control discrete device levels.

Appending NTX expansion models can interface up to 24 relays and 24 level sensing inputs on a single IP address.

Applications include on/off monitoring and control of motors, pumps, lights, heaters, fans, etc. or the open/close status of valves, doors, and gates.

An isolated RS-485 bus links up to three expansion modules to the Ethernet module with connectors that join along the DIN rail. This internal NT bus distributes power and communication between the modules. Users can mix analog, temperature, and discrete I/O modules across the NT bus.

Acromag’s i2o® messaging technology allows direct peer-to-peer or multicast communication between remote modules without a master controller.

Learn more about the Ethernet digital I/O NT Series and view all models >

NT2130 Ethernet Digital I/O Modules with Mechanical Relays Features & Benefits

  • Configured over Ethernet with web browser
  • Expandable I/O capacity, up to 60 I/O channels of mixed signal types on one IP address
  • Field-selectable Modbus TCP/IP, EtherNet/IP,
    or * Profinet communication
  • i2o peer-to-peer or multicast communication
  • Dual RJ45 ports enable daisy chain topology
  • High-power SPST Form A relays switch 30V DC or 240V AC at currents up to 5A
  • Active-high Inputs support TTL thresholds and up to 32V DC
  • Configurable counter/timers and totalization
  • *OPC-UA, *MQTT and *RESTful API IIoT support
  • Conditional logic for rule-based I/O operation
  • Advanced *alarm and *data logging functions
  • 1500V isolation between I/O, network, and power
  • Thin 25mm housing with pluggable terminals
  • Wide temperature operation (-40 to 70°C)
  • CE compliant. UL/cUL Class 1 Div 2 and ATEX/IECEx Zone 2 approvals

* Coming soon. Consult factory for availability

Learn more about the Ethernet I/O NT Series and view all models >

How to Connect to Acromag Ethernet I/O Devices - 8500815
Getting Connected to Acromag Ethernet I/O Devices These instructions summarize the basic steps you will have to take in order to initially connect an Acromag Ethernet I/O product to your Personal Computer (PC) or laptop. To connect an Ethernet device to your PC, consult with your network administrator. Either temporarily change the TCP/IP configuration of...
What is EtherNet/IP? White Paper - 8500747 (Log in to view the file)
Introduction to EtherNet/IP What is EtherNet/IP (Ethernet Industrial Protocol)? EtherNet/IP is traditional Ethernet combined with an industrial application layer protocol targeted to industrial automation. This application layer protocol is the Control and Information Protocol (CIP™). In this whitepaper, you will review the basic aspects of EtherNet/IP and learn how the open-source protocol can benefit your...
How to Remotely Access Ethernet I/O Over the Internet - 8400517 (Log in to view the file)
This white paper details the steps needed to access your I/O module remotely over the internet. This can be done with Ethernet-enabled I/O modules that have the capability to display built-in webpage-based output monitoring. In other words, if your I/O module can serve a webpage over Ethernet, and the network it is connected to has...
How to Connect to an Ethernet Device for Communication - 8501122-8501116 (Log in to view the file)
How to Connect to an Ethernet Device for Communication Acromag manufactures Ethernet-enabled devices that monitor and isolate voltage, current, thermocouple, and RTD signals, as well as control analog and digital outputs, and can transmit I/O information over Ethernet and on the internet. However, the complexities of Ethernet communication can make connecting to these devices difficult....
How to Communicate to Ethernet Modules from Legacy Allen Bradley or Rockwell Automation Devices - 8500761
Communicating to Acromag Series 900EN-60xx Ethernet Modules from Legacy Allen Bradley or Rockwell Automation Devices This document illustrates a procedure for configuring message commands for Acromag Series 900EN Ethernet/IP modules, using Ladder Logic programming and an SLC5\05 Programmable Logic Controller. It is assumed that the user has a working knowledge of Ladder Logic programming, the...
NTE Series Firmware Download and a Request Form to be Notified of Feature Updates. (Log in to download the file)
NT EtherNet/IP EDS File (Log in to download the file)
  • Compare

    4001-252: DIN Rail End Stops

    • DIN rail end stop for hazloc approvals
    Select options
  • Compare

    5035 Series: Ethernet Cables

    • Ethernet straight cable, CAT5
    • Ethernet crossover cable, CAT5E
    • Low EMI Double-Shielded Ethernet Patch Cable
    Select options

Additional information

Weight 8 oz
Dimensions 1 × 5 × 6 in
Product Series

BusWorks NT Series

Part Number

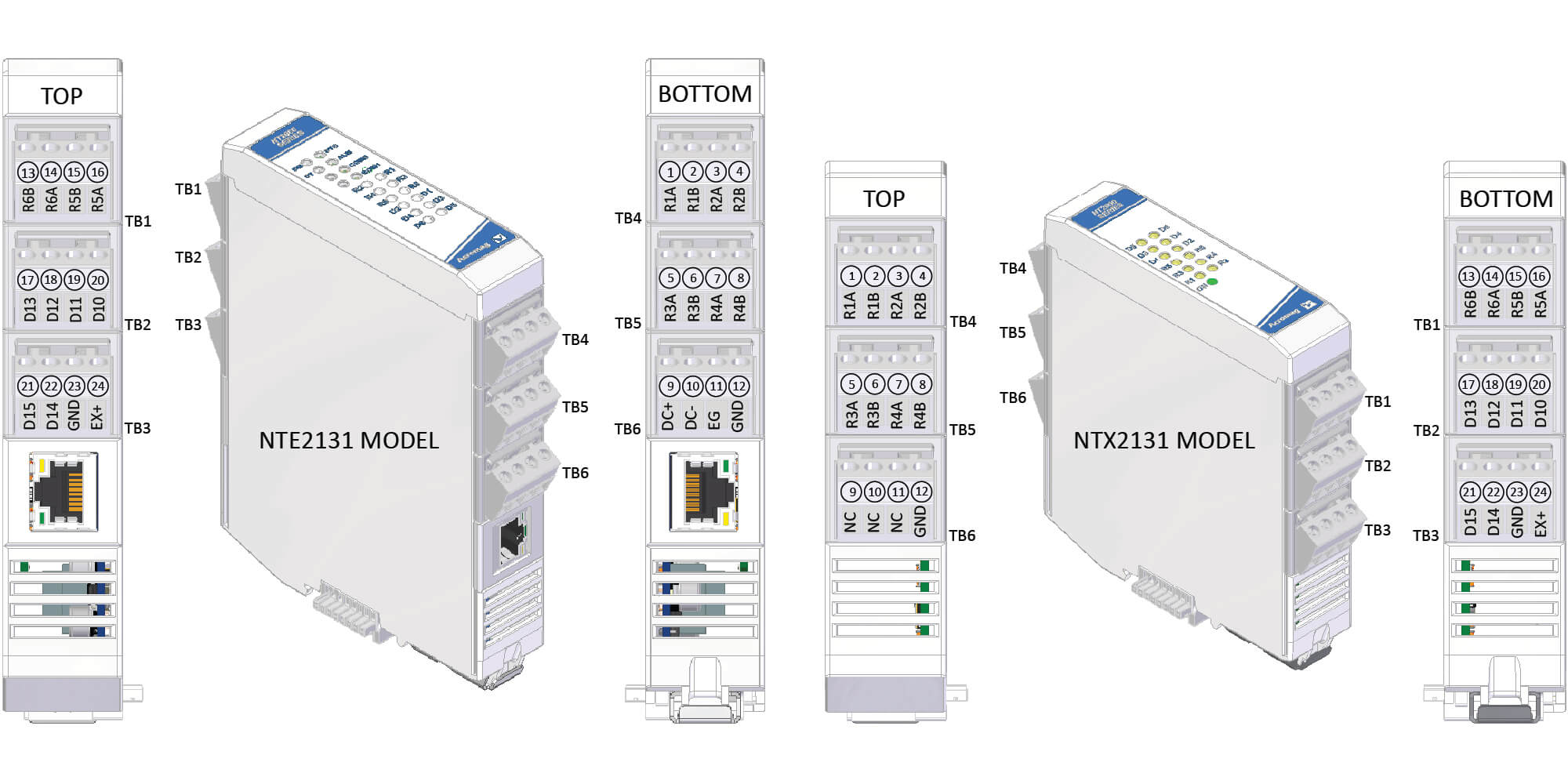

NTE2131-1111: Ethernet I/O module with dual RJ45 ports, 6 relays, 6 discrete inputs, NTX2131-0011: Expansion I/O module with 6 relays, 6 discrete inputs
