Product short description:
  • 16 single-ended voltage inputs
  • Ethernet I/O plus Expansion I/O
  • Multi-protocol support

NT2240 modules offer 16 voltage inputs. Each input supports bipolar and unipolar ranges with 16-bit A/D. NTE Ethernet models provide a compact network interface to monitor sensor levels or 0-10V devices. Appending NTX expansion models can interface up to 64 voltage inputs on a single IP address.

Click here to watch a short video highlighting the features of the BusWorks NT Series.



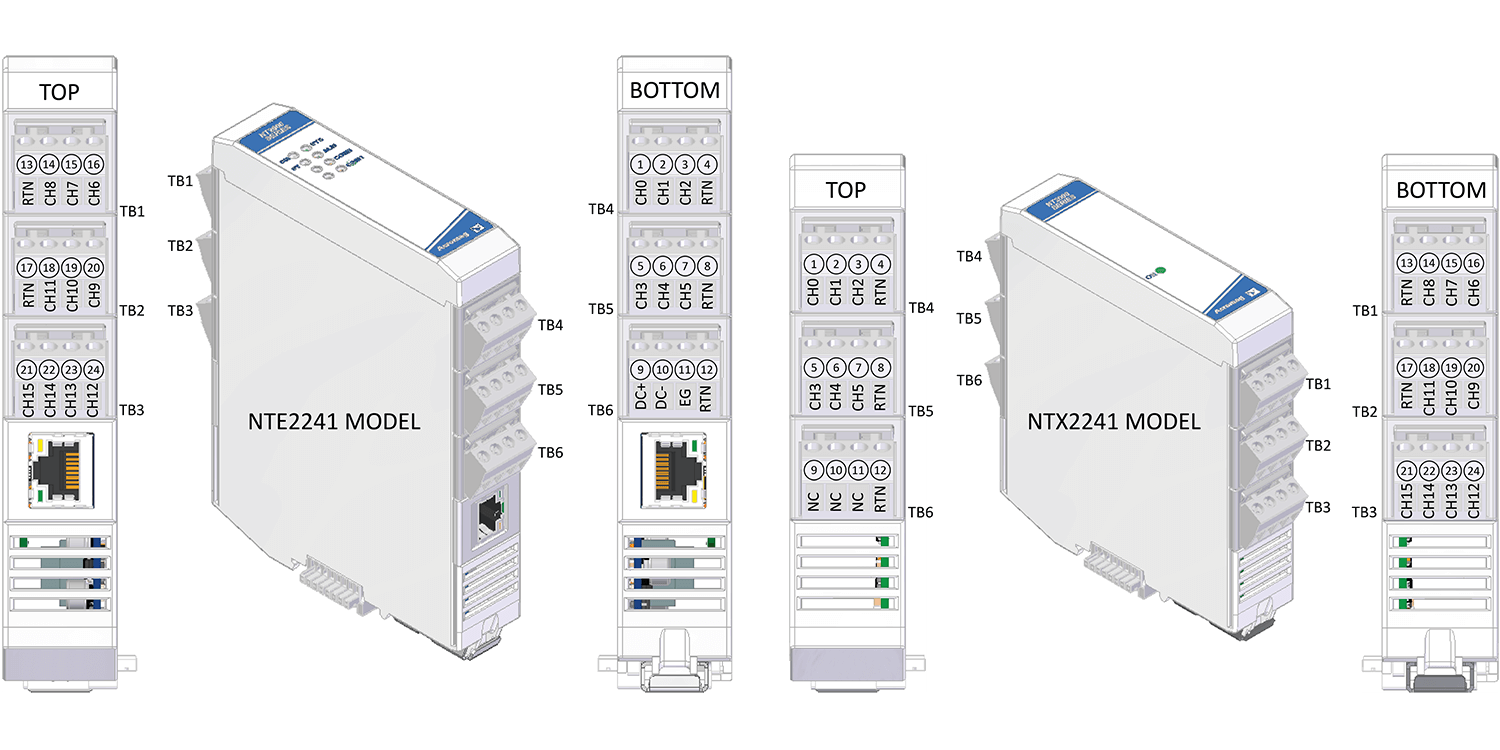

NT2240 Ethernet Analog I/O Modules Description

The BusWorks® NT2000 series offers a cost-effective, modular solution for Ethernet remote I/O systems. Two module types are available. NTE Ethernet models provide the protocol interface plus I/O signal processing channels. NTX expansion modules add extra I/O channels when mated to any NTE Ethernet communication module.

NT2240 modules offer 16 voltage inputs. Each input supports bipolar and unipolar ranges with 16-bit A/D. NTE Ethernet models provide a compact network interface to monitor sensor levels or 0-10V devices. Appending NTX expansion models can interface up to 64 voltage inputs on a single IP address.

Applications include collecting pressure, HVAC levels, temperature, and other data at sensors, transducers, or transmitters. The 0-10V signal is very commonly used for automation and environmental controllers.

An isolated RS-485 bus links up to three expansion modules to the Ethernet module with connectors that join along the DIN rail. This internal NT bus distributes power and communication between the modules. Users can mix analog, temperature, and discrete I/O modules across the NT bus.

Acromag’s i2o® messaging technology allows direct peer-to-peer or multicast communication between remote modules without a master controller.

Performance Specifications

Ethernet Interface (NTE Models Only)

Communication:
Configurable for Modbus TCP/IP, Ethernet/IP, or Profinet.
Ethernet/IP, Profinet support coming soon.
10/100Mbps data rate, auto-sensing.
IP Address: Default 192.168.0.10. Configurable static IP or DHCP.

Analog Inputs

A/D Converter: 16 input channels multiplexed to a 24‐bit sigma-delta ADC through resistive dividers using a 16-bit bipolar conversion scheme.
Input Voltage Ranges:
±1V, ±5V, ±10V, 0-1V, 0-5V, 0-10V.
Input channels are single-ended inputs that share a common return connection.
Input Accuracy: Better than ±0.05% of span typical, ±0.1% maximum.
Input Measurement Temperature Drift: Better than ±50ppm/°C (±0.0050%/°C).
Input Update/Conversion Rate: Response time will vary as averaging is increased. The fastest response time without sample averaging is less than 1ms typical.
Input Overvoltage Protection: Bipolar Transient Voltage Suppressers (TVS) with 18V clamp level. Inputs also include triple diode over-voltage clamps.
Input Impedance: 97.1KΩ minimum (NT2241 input divider).
Input Filter: Normal mode filtering fixed per input type.

General I/O

Input Update/Conversion Rate: Fresh data available to the network every 10ms.
Response Time from an Ethernet Command: Less than 5ms, typical.

Environmental and Physical

Temperature and Humidity:
Operating: -40 to +70°C (-40 to +158°F).
Storage: -40 to +85°C (-40 to +185°F).
Relative Humidity: 5 to 95%, non-condensing.
Isolation: 1500V AC for 60 seconds and 250V AC or 354V DC continuous between I/O channels (group), each network port and power circuits.
Power Supply:
9-32V DC SELV power wired to NTE model only.
Power to NTX models is via NT bus connection.
Power Consumption:
NTE2241: <=1.5W (input).
NTX2241: <=0.5W max. (each).
Dimensions (width x height x depth):
NTE: 25 x 116.9 x 139.2 mm (0.98 x 4.6 x 5.48 inches).
NTX: 25 x 116.9 x 116.65 mm (0.98 x 4.6 x 4.59 inches).
Weight:
NTE: 0.5 lbs (0.23 kg).
NTX: 0.3 lbs (0.14 kg).

Standards and Certifications

Electromagnetic Compatibility (EMC): CE marked, per EMC Directive 2004/108/EC.
Safety Approvals: UL/cUL: Class I; Div 2; Groups A, B, C, D (pending). ATEX/IECEx: Zone 2 (pending).



  • Configured over Ethernet with web browser
  • Expandable I/O capacity, up to 64 I/O channels of mixed signal types on one IP address
  • Field-selectable Modbus TCP/IP, *Ethernet/IP, or * Profinet communication
  • i2o peer-to-peer or multicast communication
  • Dual RJ45 ports enable daisy chain topology
  • Inputs support TTL thresholds and up to 32V
  • Open-drain outputs switch up to 32V and 250mA
  • Tandem input/output channels allow loop-back monitoring of outputs
  • LED status indicators for visual troubleshooting
  • *OPC-UA, *MQTT and *RESTful API IIoT support
  • *Conditional logic for rule-based I/O operation
  • Advanced *alarm and *data logging functions
  • 1500V isolation between I/O, network, and power
  • Thin 25mm housing with pluggable terminals
  • Wide temperature operation (-40 to 70°C)
  • CE compliant. UL/cUL Class 1 Div 2 and ATEX/IECEx Zone 2 approvals (pending).

* Coming soon. Consult factory for availability.
