NT2230 modules offer 8 voltage inputs and 2 limit alarms. Each input has true differential 16-bit A/D. NTE Ethernet models provide a compact network interface to monitor sensor levels or 0-10V devices. Appending NTX expansion models can interface up to 32 differential voltage inputs on a single IP address.





[DISPLAY_ULTIMATE_PLUS]

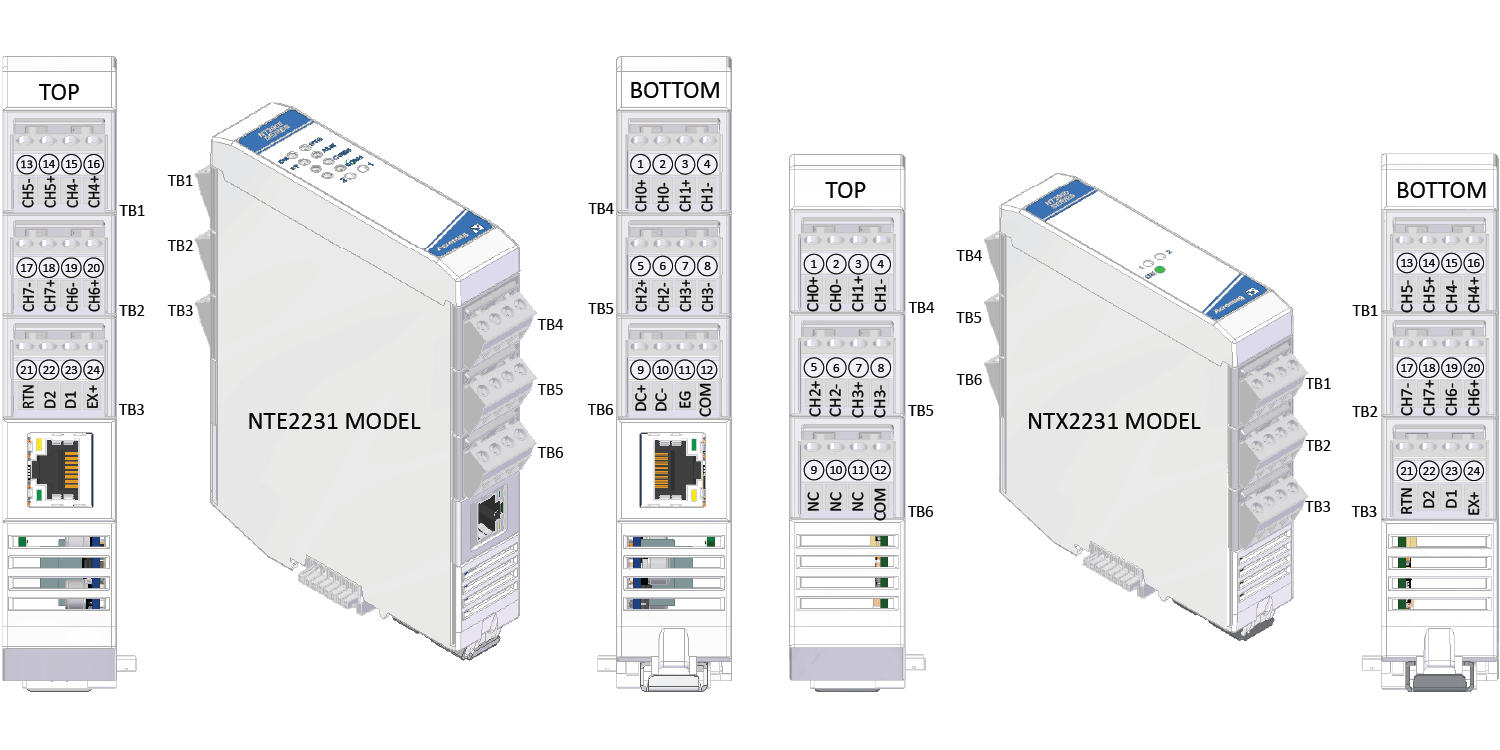

NT2230 Ethernet Analog I/O Modules Description

The BusWorks® NT2000 series offers a cost-effective, modular solution for Ethernet remote I/O systems. Two module types are available. NTE Ethernet models provide the protocol interface plus I/O signal processing channels. NTX expansion modules add extra I/O channels when mated to any NTE Ethernet communication module.

NT2230 modules offer 8 voltage inputs and 2 limit alarms. Each input has true differential 16-bit A/D. NTE Ethernet models provide a compact network interface to monitor sensor levels or 0-10V devices. Appending NTX expansion models can interface up to 32 differential voltage inputs on a single IP address.

Applications include collecting pressure, HVAC levels, temperature, and other data at sensors, transducers, or transmitters. The 0-10V signal is very commonly used for automation and environmental controllers.

An isolated RS-485 bus links up to three expansion modules to the Ethernet module with connectors that join along the DIN rail. This internal NT bus distributes power and communication between the modules. Users can mix analog, temperature, and discrete I/O modules across the NT bus.

Acromag’s i2o® messaging technology allows direct peer-to-peer or multicast communication between remote modules without a master controller.

Performance Specifications

Ethernet Interface (NTE Models Only)

Communication:
Configurable for Modbus TCP/IP, Ethernet/IP, or Profinet.
Ethernet/IP, Profinet support coming soon.
10/100Mbps data rate, auto-sensing.
IP Address: Default 192.168.0.10. Configurable static IP or DHCP.

Analog Inputs

A/D Converter: Eight input channels differentially multiplexed to a 24‐bit sigma-delta ADC through unity‐gain differential buffers (only 16-bits are used).
Input Current Ranges:
±1V, ±5V, ±10V, 0-1V, 0-5V, 0-10V.
Inputs are referenced to input common (COM) using resistive dividers at each input node and do not float.
Input Accuracy:
Better than ±0.05% of span typical, ±0.1% maximum.

Discrete Inputs (Active-Low)

Input Signal Voltage Range: 0 to +32VDC.
Input Current: 280µA, typical at 32VDC.
Input Signal Threshold
TTL compatible w/100mV of hysteresis, typical.
1.7V DC Low-to-High, 1.6V DC High-to-Low.
0.8V DC TTL LOW limit, 2.0V DC TTL HIGH limit.
Input Resistance: 100K ohms typical (input only), ~10K ohms with output pull-ups.
Input Response Time: 5ms typical, not including network time.

Discrete Outputs (Sinking)

Output “OFF” Voltage Range: 0 to 32V DC.
Output “ON” Current Range: 0 to 250mA DC, continuous.
Output Rds ON Resistance: 0.8 ohms typical, 1.6 ohms maximum.
Output Response Time: 5ms typical. Does not include network time.

General I/O

Input Update/Conversion Rate: Fresh data available to the network every 10ms.
Response Time from an Ethernet Command: Less than 5ms, typical.
Excitation:
External voltage of 4-32V required between I/O EXC and any RTN for DI/O.
Excitation must source 52mA minimum (at 32V).
For 2 channels at 250mA max rated load, excitation must source 5A min.
I/O Pull-Ups (Internal): Each discrete I/O channel has a 10KΩ pull-up to EXC to pull the tandem open drain output and input high/OFF.

Environmental and Physical

Temperature and Humidity:
Operating: -40 to +70°C (-40 to +158°F).
Storage: -40 to +85°C (-40 to +185°F).
Relative Humidity: 5 to 95%, non-condensing.
Isolation: 1500V AC for 60 seconds and 250V AC or 354V DC continuous between I/O channels (group), each network port and power circuits.
Power Supply:
9-32V DC SELV power wired to NTE model only.
Power to NTX models is via NT bus connection.
Power Consumption:
NTE2231: <=1.5W (input).
NTX2231: <=0.5W max. (each).
Dimensions (width x height x depth):
NTE: 25 x 116.9 x 139.2 mm (0.98 x 4.6 x 5.48 inches).
NTX: 25 x 116.9 x 116.65 mm (0.98 x 4.6 x 4.59 inches).
Weight:
NTE: 0.5 lbs (0.23 kg).
NTX: 0.3 lbs (0.14 kg).

Standards and Certifications

Electromagnetic Compatibility (EMC): CE marked, per EMC Directive 2004/108/EC.
Safety Approvals: UL/cUL: Class I; Div 2; Groups A, B, C, D (pending). ATEX/IECEx: Zone 2 (pending).



  • Configured over Ethernet with web browser
  • Expandable I/O capacity, up to 64 I/O channels of mixed signal types on one IP address
  • Field-selectable Modbus TCP/IP, *Ethernet/IP, or * Profinet communication
  • i2o peer-to-peer or multicast communication
  • Dual RJ45 ports enable daisy chain topology
  • Inputs support TTL thresholds and up to 32V
  • Open-drain outputs switch up to 32V and 250mA
  • Tandem input/output channels allow loop-back monitoring of outputs
  • LED status indicators for visual troubleshooting
  • *OPC-UA, *MQTT and *RESTful API IIoT support
  • *Conditional logic for rule-based I/O operation
  • Advanced *alarm and *data logging functions
  • 1500V isolation between I/O, network, and power
  • Thin 25mm housing with pluggable terminals
  • Wide temperature operation (-40 to 70°C)
  • CE compliant. UL/cUL Class 1 Div 2 and ATEX/IECEx Zone 2 approvals (pending).

* Coming soon. Consult factory for availability.





How to Connect to Acromag Ethernet I/O Devices Application Note
