Product short description:
  • 1Gb Ethernet
  • Optional Power Over Ethernet
  • PCIe bus interface

The AP580E-POE-LF offers an option which makes the AP580E a power sourcing equipment device (PSE) that provides 52V DC up to 10 watts of power to powered devices (PD) such as a video camera and VOIP phones or any other PD device.

Click here to watch a video highlighting AcroPack features.

The AP580E-POE-LF offers an option which makes the AP580E a power sourcing equipment device (PSE) that provides 52V DC up to 10 watts of power to powered devices (PD) such as a video camera and VOIP phones or any other PD device.

This allows a user to connect point to point without contending with any other traffic on a network.

These modules provide a single port Ethernet which is capable of speeds of 10, 100 or 1000 Mbps data rates.

The AcroPack® product line updates our popular Industry Pack I/O modules with a PCIe interface format. This tech-refresh design offers a compact size, low-cost I/O, and a rugged form factor. Combining different AcroPack module types on one XMC, VPX, or PCIe carrier allows for a simplified modular approach to system assembly.

Designed for COTS applications these Ethernet communication mezzanine modules deliver high-density, high-reliability, and high-performance at a low cost.

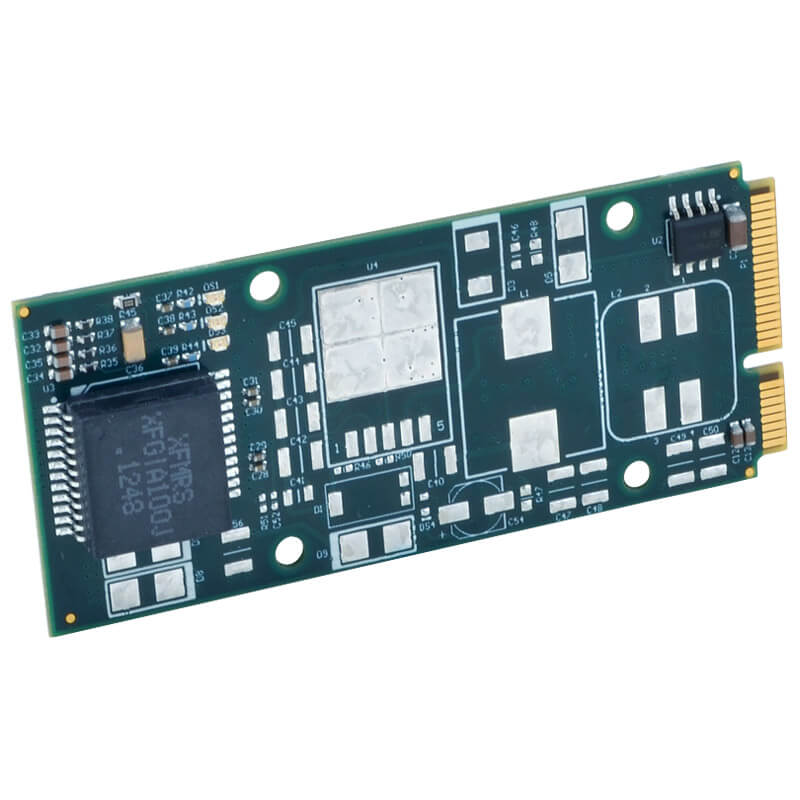

The AP580 series modules are 70mm long, this is 19.05mm longer than the full-length mini PCIe card at 50.95mm. The board’s width is the same as mPCIe board of 30mm and they use the same mPCIe standard board hold down standoff and screw keep out areas.

A down facing 100 pin Samtec connector will mate with the carrier card. This ensures a secure connection for your I/O.

Fifty of these signals are available as field I/O signals.

Performance Specifications

Power

Power Supply Voltage Current Draw
3.3V DC ±5% 115 mA (max.)
1.5V DC Not used
5.0V DC Not used
12V DC 1.5A (min.)*
-12V DC Not used

*AP580E-POE-LF only
AP580E-POE-FL Output Power: 52V DC at 0.193A (max.) 10 watts.
Isolation: POE output voltage, 100V DC.

PCI Express Base Specification

Conforms to PCIe base specification: Revision 2.1.
Lanes: 1 lane.
Bus Speed: 2.5 Gbps (Generation 1).
Memory: 4k space required.

Environmental

Operating temperature: -40 to 70°C.
Storage temperature: -55 to 125°C.
Relative humidity: 5 to 95% non-condensing.
Operation Vibration: Designed to comply to MIL-STD-810G, method 514.6.
Operating Shock: Designed to comply to MIL-STD-810G, method 516.6.
EMC Directive: Conforms to EMC Directive 2004/108/EC.

Physical

Length: 70mm.
Width: 30mm.

  • Power over Ethernet as a power sourcing device
  • Supports Intel i210 Ethernet controller PROset drivers
  • Small form factor
  • Intel 1Gb i210 Ethernet Controller
  • Single port
  • Failsafe receivers
  • Audio Video bridging
  • Jumbo frames
  • Interrupt moderation, VLAN support and IP checksum offload
  • PCIe optimized system power management
  • Four transmit and four receive queues
  • RSS and MSI-X to lower CPU utilization in multi-core systems
  • Advanced cable diagnostics, auto MDI-X
  • Error correcting memory in packet buffers
  • CE compliant
  • PCIe, XMC and VPX carriers
