$890
Clear
Product short description:
  • Compatible with XVME-6510 and XVME-6700 SBC models
  • Variety of additional connectors

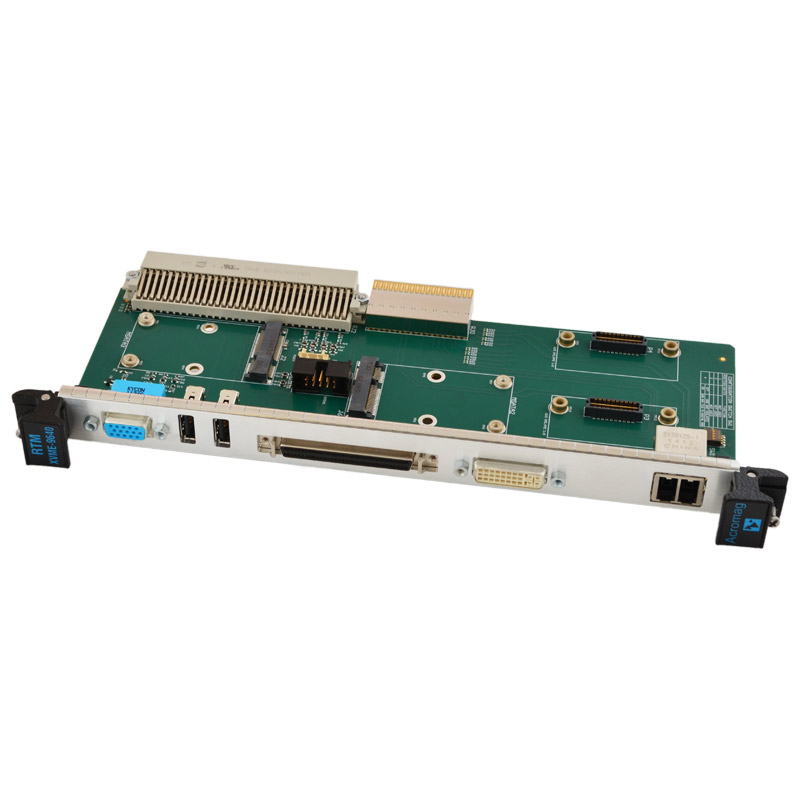

Acromag’s XVME-9640 rear transition module adds a variety of I/O connectors to the XVME-6510 and XVME-6700 VME single board computers.

RSS
FACEBOOK
FACEBOOK
TWITTER
Visit Us
LINKEDIN

The XVME-9640 module may be installed into the rear slot directly behind the XVME-6510/ XVME-6700 to easily access all of the available I/O on the XVME 6510 / XVME7700’s P2, and optionally P0 connectors, as well as allow mSATA SSD modules to be added for storage.

The XVME-9640 contains two mSATA sockets that allow two SSD drives to be added while still remaining within a single VME slot. Using the software RAID functionality of the QM87 PCH, these drives can even be setup as a RAID0/1 array if redundancy or extra speed is desired.

WARNING: mSATA requires P0 on both the XVME-6500 / XVME-6700 and XVME-9640 for proper operation.

Note: The standard XVME-9640 cannot be used in a backplane that uses VITA 31.1 Ethernet. A custom build option is available that isolates the Ethernet lines for use in a VITA 31.1 system.

Please consult factory for this option.

I/O is available on the front panel of the XVME-9640:
• Two optional Gigabit Ethernet ports are available on the front panel’s optional
• RJ Point 5 connector
• One VGA port
• One DVI-D port
• Two USB 2.0 ports
• PMC/XMC I/O from P2

I/O is available via internal connectors on the XVME-9640:
• Stereo Audio Line-In & Line-Out
• One software-selectable RS-232/RS-485 serial port
• PMC/XMC I/O from RJ0 connector is available via two optional high-speed Samtec connectors

  • I/O available on the board via standard connectors:
    • VGA
    • USB (2)
    • DVI-D
    • PMC I/O from P2
  • Available via headers:
    • Audio
    • RS-232/422/485 Serial (1)
  • Additionally available*:
    • Ethernet (2) thru RJ Point 5 connector*
    • PMC I/O from P0*

*requires P0 connector

Manuals

XVME-6510 User Manual (Log in to download the file)

XVME-6700 User Manual (Log in to download the file)

Additional information

Weight N/A
Dimensions N/A
Part Number

XVME-9640-1-LF: VME rear transition module, P0 connector., XVME-9640-2-LF: VME rear transition module, no P0 connector.
