Product short description:
  • Two IP module slots
  • Front access I/O
  • Plug-and-play carrier configuration and interrupt support
RSS
FACEBOOK
FACEBOOK
TWITTER
Visit Us
LINKEDIN

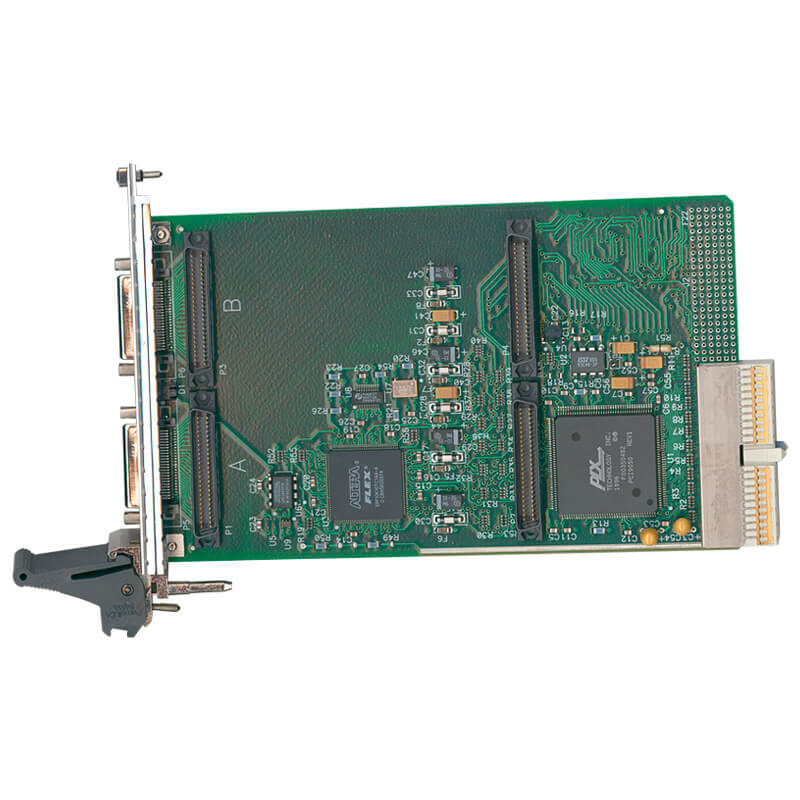

The AcPC8630A is a nonintelligent slave board that interfaces two IP modules to the CompactPCI® (cPCI) bus. All 100 I/O points are brought out the front connectors for easy cable access.

Performance Specifications

General

Acromag’s carrier boards provide full data access to the IP module’s I/O, ID, interrupt and memory spaces. With full access to the IP module’s programmable
registers, you can easily configure and control their operation from the CompactPCI bus.

Up to two interrupt requests are supported for each IP module. All board interrupts are mapped to PCI bus INTA# signal.

Individual passive filters on each IP power supply line provide optimum filtering and noise isolation between the IP modules and the carrier board.

IP Compliance (ANSI/VITA 4)

Meets IP specs per ANSI/VITA 4-1995 (8MHz and 32 MHz operation) and IP I/O mapping to the front panel.
Electrical/mechanical interface Supports single or double size IP modules.
IP Module I/O space, ID space, INT, and MEM space supported.
Interrupts: Supports two interrupt requests per IP module and interrupt acknowledge cycles via access to IP INT space.

CompactPCI bus Compliance

Meets PCI specification: V2.1 and PICMG 2.0, R2.1.
Data transfer bus: Slave with 32-bit, 16-bit, and 8-bit data transfer operation. 32-bit read/write accesses are implemented as two 16-bit transfers to the IPs.
Interrupts: CompactPCI bus INTA# interrupt signal. Up to two requests sourced from each IP mapped to INTA#. Interrupts come from IP modules via access to IP
module INT space.
32-bit memory space: Upon power-up the system auto-configuration process (plug & play) maps the carrier’s base address (for a 1K byte block of memory) into the PCI bus 32-bit memory space.

Power Requirements

Power
3.3V (±5%): 300mA maximum.
5V (±5%): 30mA maximum.
±12V (±5%): 0mA (not used).
Plus IP module load.
MTBF: Contact factory

Environmental

Operating temperature: 0 to 70°C (AcPC8630A model) or -40 to 85°C (AcPC8630AE model).
Storage temperature: -55 to 100°C.
Relative humidity: 5 to 95% non-condensing.

The AcPC8630A is a drop in replacement for the AcPC8630, please see the known differences document below for more information.
Known difference between the AcPC8630 and the AcPC8630A statement.

  • Two industry-standard IP module slots
  • Board resides in memory space
  • Supports 8 and 32MHz operation
  • Supports IP module I/O, ID, INT, and MEM spaces
  • 100 I/O points with front access
  • High-density front connectors
  • Compatible with all CompactPCI CPUs
  • Compatible with 32-bit and 64-bit
  • CompactPCI® and PXI™ backplane
  • Plug-and-play carrier configuration and interrupt support
  • Two interrupt channels per IP module
  • Front panel LEDs
  • Supervisory circuit for reset generation
  • Individually filtered and fused power to each IP
  • Ruggedized with ESD strip and EMC front panel
  • Easily integrate IPs with your software using RTOS VxWorks, Linux, or Win DLL for
  • Windows® 2000/XP/Vista/7 32-bit systems.
