Product short description:
  • PCIe x16 Gen 3 interface via Expansion plane
  • One XMC and Four AcroPack slots
  • 6U form factor

The VPX4520 carrier card provides a simple and cost-effective solution for interfacing one XMC and four AcroPack modules to a VPX computer system.

Click here to watch a short AcroMaggie video highlighting the VPX4520 features.



VPX4520: VPX Carrier Card for AcroPack® Modules Description

The VPX4520 carrier card provides a simple and cost-effective solution for interfacing one XMC and four AcroPack modules to a VPX computer system.

Connect to the OpenVPXâ„¢ compatible system via Expansion plane for a direct PCIe connection over the VPX backplane. This allows host processors access to a high-performance, low latency interconnect to the AcroPack and XMC modules on the carrier card.

By inserting AcroPack or XMC industrial I/O developers can now leverage hundreds of available functions currently unavailable in a VPX platform.

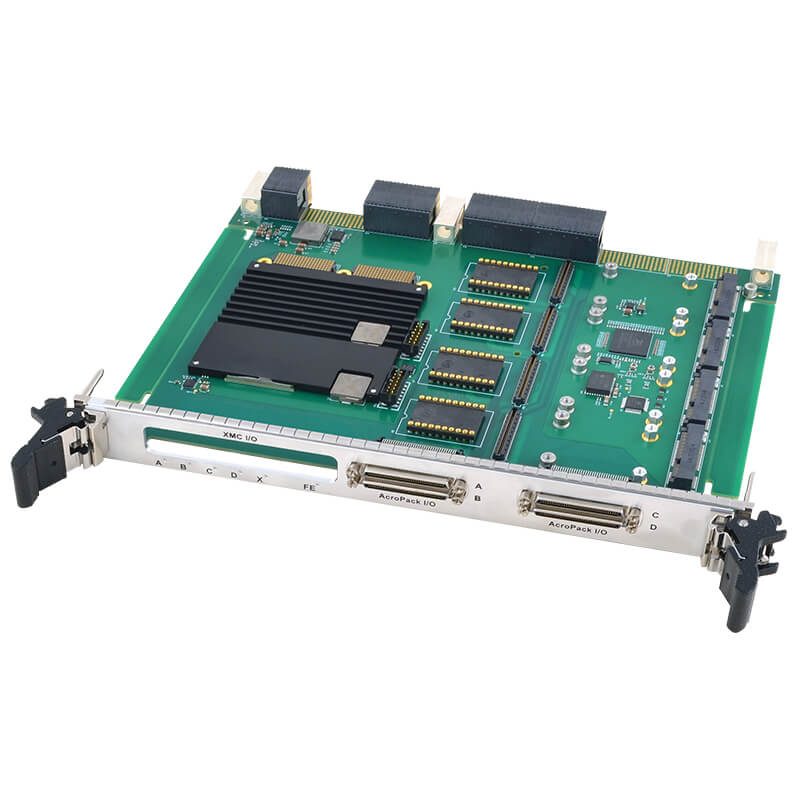

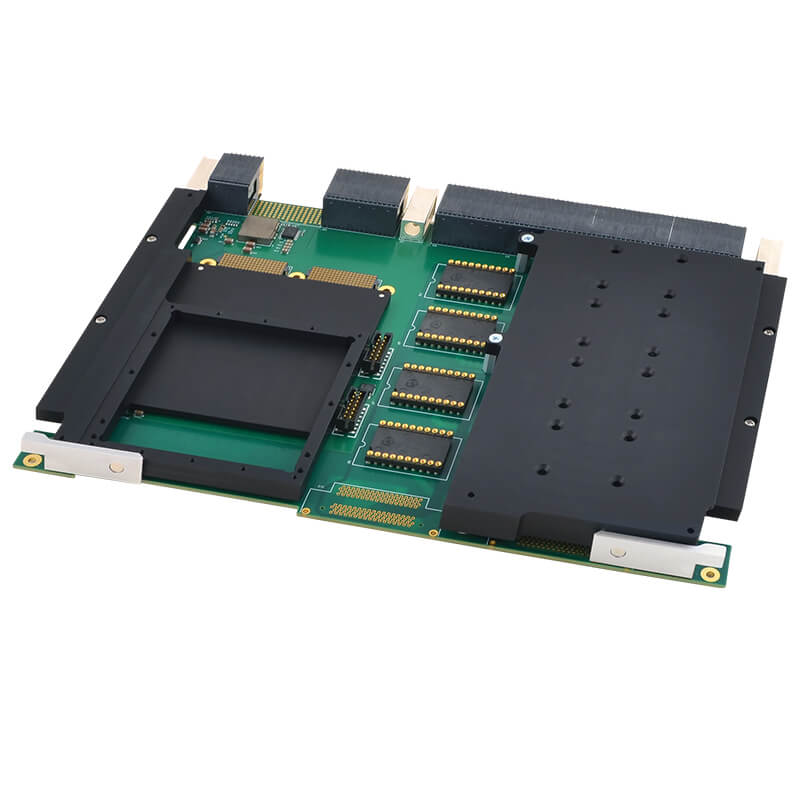

These carriers are ideal for high-performance industrial, defense, scientific research, and telephony systems requiring high-speed I/O expansion. The VPX4520 is available in two versions: air-cooled and conduction-cooled.

The VPX4520 is a member of a 6U OpenVPX mezzanine carrier card family that supports a simple and cost-effective solution for interfacing XMC or AcroPack modules to OpenVPX computer systems.

Learn more about the AcroPack Series and view all the models >

VPX4520: VPX Carrier Card for AcroPack® Modules Features & Benefits

  • OpenVPXâ„¢ compatible via expansion plane connection
  • Support upstream/downstream PCIe links
  • Supports use of prXMC single board computers
  • Optional backplane configuration for one 16-lane port, two 8-lane ports, or four 4-lane ports
  • Supports standard VITA 42 and rugged VITA 61 XMC modules on 25W mezzanine site
  • XMC site supports PCIe x8 Gen 3 interface
  • 68 pin HD CHAMP front I/O connectors
  • Supports 78-bits (39 pairs) of XMC I/O to backplane per pattern X38s+X8d+X12d of VITA 46.9
  • Conforms to VITA 42.0, 42.3, 46.0, 46.4, 48, 65
  • Supports front or rear panel XMC I/O
  • Supports front or rear panel AcroPack I/O
  • ±12V AUX power to XMC site
