New CompactPCI Serial Options

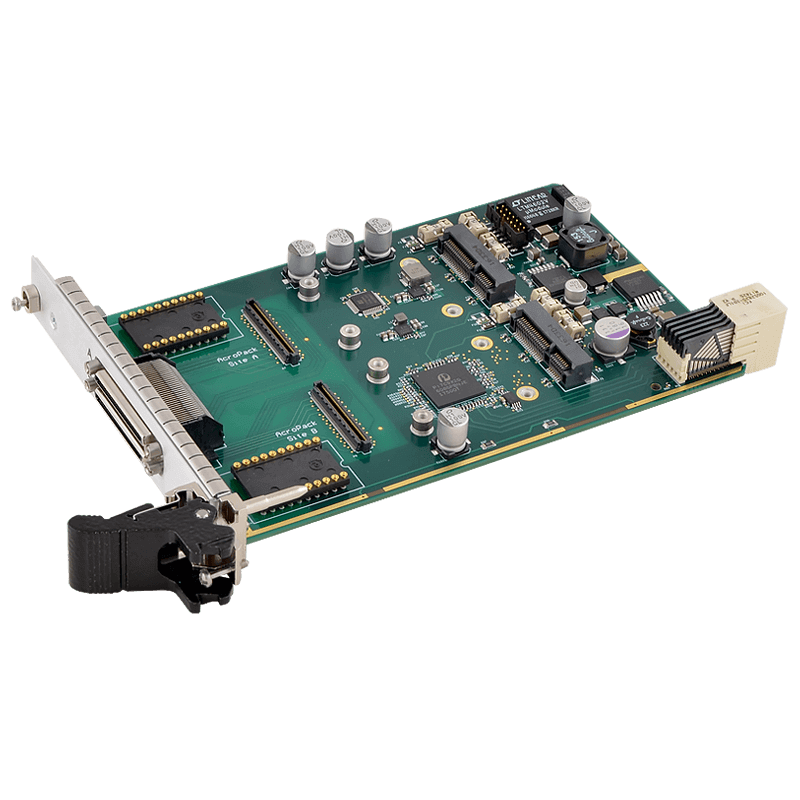

The ACPS3310 and ACPS3320 are 3U CompactPCI Serial mezzanine module carrier cards for embedded measurement and control applications. These boards feature front or rear I/O and with two AcroPack module slots, they accommodate a wide variety of I/O signal processing tasks.

Key Features & Benefits

  • Two AcroPack or mini-PCIe module slots support any combination of I/O functions
  • PCI Express Version 2.1 compliant carrier
  • Compliant with PICMG CPCI-S.0 R2.0 standard
  • PCIe switch allows two devices to share a single 4HP peripheral board slot in a CPCI-S chassis
  • Geographical addressing identifies carrier location on the backplane
  • Fused +1.5V, +3.3V, +5V, +12V, -12V DC power. A fuse is present on each supply line serving each AcroPack module.
  • JTAG header for programming and debugging AcroPack modules with an FPGA
  • Extended temperature range
  • Software development tools for VxWorks, Linux, and Windows environment

Download Specs ⇒

Ordering Information (ACPS3310)     |       Ordering Information (ACPS3320)
